SKU: 95485

URail system LED L-connector 1x5.8W matt chrome 230V metal dimmable

Sale price€51,53 Regular price€73,49
Save €21,96

Tax included. Shipping calculated at checkout

Delivery time
On average, delivery takes 2-4 Tage

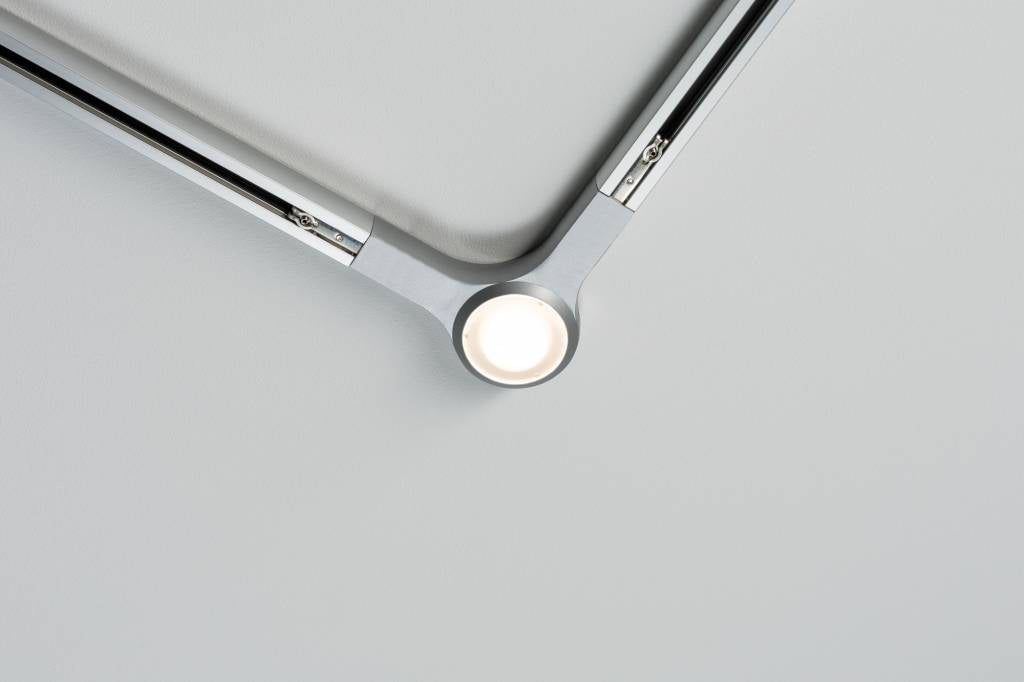

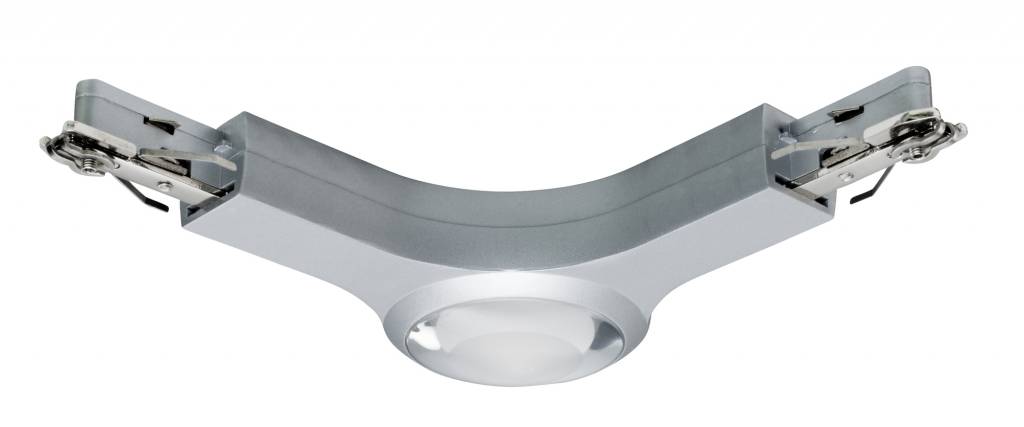

URail LED L-connector 5.8W matt chrome dimmable
Design your individual rail system! The illuminated connectors are low-glare, infinitely dimmable and can be easily connected to other URail components. They are suitable for both wall and ceiling mounting.

  • easy plug-in assembly
  • efficient LED technology
  • LED bulbs (permanently installed) included in the scope of delivery
Dimensions (height x width x depth) : H: 27 x W: 141 x D: 141 mm
usable length: 88/88mm
Bulbs included:
absorbed power: 5.85W
Tension: 230V
Color: Matt chrome
Material: metal
Ballast efficiency: 0.99
Dimmable: with dimmer R, L, C (universal usable)
Can be used with the following dimmers: RC Busch-Jäger 6513U-102, RC Merten MEG 5136-0000, RL Busch-Jäger 2247 U, RL Merten MEG5133-0000, RLC Eltako EUD61NP - 230V, RLC Müller Paladin 873 030 LED
Mounting location recommendation: ceiling mount
Protection class: Protection class II
Technology: LEDs
Lifespan: 30,000 hrs
color temperature: 2700K
Assembly: 5.8W
Number of equipment: 1x
beam angle: 80 degrees
Beam angle LED module: 125°
Luminous flux LED module: 501 lm
ignition time <: 0.0s
Nominal luminous flux (lumen): 420 lm
Characteristics
Dimmbar
Ja
Color
Chrom matt
Dimensions
Length: 27 mm Width: 141 mm Height: 27 mm
Kelvin
2700
Leuchtmittel
inklusive
Lumen
399.6
Schutzklasse
Schutzklasse II
Weight
1.63 kg
